equipment

Rotation rheometer ARES  Producer: TA Instruments

Temperature range: -150 °C – 600 °C

Measuring range:
0,002 mNm – 200 mNm 0,001 s^-1 – 100 s^-1

Special functions: inert gas normal force transducer different geometries possible EVF tool for strain tests   DHR3 Producer: TA Instruments

Temperature range: – 30 °C – 600 °C

Messbereich:
 0,000003 mNm – 200 mNm

Special functions: Peltier thermostat integrated camera in the tempered chamber   ARG2 Producer: TA Instruments

Temperature range: -30 °C – 600 °C

Measuring range: 0,000003 mNm – 200 mNm

 Special functions:  Peltier thermostat             MCR 502 – Rheometer
Producer: Anton Paar

Temperature range: 25 °C – 400 °C

Measuring range:
0,002 mNm – 230 mNm 10^-7 rad/s – 628 rad/s

Special functions: magnetic cell

GPC1

Producer: Agilent Technologies

Temperature range: 60 °C – 150 °C

Measuring range:  10³ g/mol – 10⁷ g/mol

Special functions: MALLS detector, absolute determination of molecular mass, IR and RI based concentration detector   GPC2

Producer: Agilent Technologies

Temperature range: 35 °C

Measuring range: 10³ g/mol – 10⁷ g/mol

special functions: LALLS detector, absolute determination of molecular mass, RI, LS, calibration for PS, silicone and silicone prepolymers   GPC3

Producer: Malvern

Temperature range:  35 °C

Measuring range: 10³ g/mol – 10⁷ g/mol

Special functions: Light scattering detector, absolute determination of molecular mass, RI, LS, viscosity and UV detector, calibration for PC, PS and PMMA

Karl-Fischer-Titration

Producer: Mettler-Toledo

Name: C30 Coulometric KF mit Stromboli

Temperature range: 25 °C – 300 °C

Measuring range: 1 ppM – 5 %

Special functions: determination of the water content of solid materials and liquids   Contact-angle

Producer: Dataphysics contact angle system OCA

Temperature range: 25 °C – 400 °C

Special functions: inertgasatmosphere, Video function   FT- IR-Spektroscopy

Producer: Thermo Scientific

Name: Nicolet 6700

measuring range: 400 cm^-1 – 4000 cm^-1

Special functions: Transmission and ATR, various libraries, gas cell coupled with TGA-FT-IR , hot press   Dynamic light scattering

Producer: Retsch/Horiba

Name: DLS LB 550

Temperature range: 25 °C – 70 °C

Measuring range: 1 nm – 10 µm

Special functions: solution viscometry

differential scanning calorimetry

Producer: TA Instruments

Name: DSC Q 2000

Temperature range: -150 °C – 550 °C

pressure cell: 25 °C – 625 °C

Measuring range: Auflösung = 0,001 mW

Special functions: measurement of the specific heat up to 50 bar
    Thermogravimetric analysis

Producer: TA Instruments

Name: TGA Q5000

Temperature range: 25 °C – 1000 °C

Measuring range: max. sample weight 1 g

Special functions: Coupling of TGA with FT-IR spectrometer possible     DMTA – Dynamic-mechanical analysis
Producer: TA Instruments

Temperature range: -150 °C – 600 °C

Measuring range: 10³ Pa – 10¹² Pa

Special functions: inertgasatmosphere, different holders   pvT- apparatus

Temperaturbereich: 25 °C – 400 °C

Messbereich: 100 bar – 2000 bar

Spezielle Funktionen: Änderungen im spezifischen Volumen von 10^-4 g/cm³ messbar, Messung von festen Probekörpern möglich

Tensile strength machine 1

Producer: Zwick

Name: Z050

Temperature range: -80 °C – 250 °C Temperature chamber: 5 °C – 90 °C

Measuring range: 0 N – 50 kN / 0 N – 1 kN /0 N – 50 N

Special functions:

• Temperierkammer: 5 % – 95 % rel. Feuchtigkeit
• Verformungssensor bis zu 700 mm

Tensile strength machine 2

Producer: Frank

Temperature range: RT

Measuring range: 0 N – 50 kN /0 N – 50 N

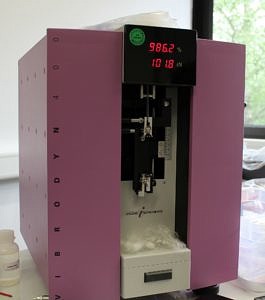

special functions:  Verformungssensor bis zu 100 mm   single fiber tensile test

Producer: Lenzing

Name: Vibrodyn 400

Measuring range: 0 N – 500 cN /0,5 mm/min – 300 mm/min

Special functions: accuracy of the force > 1 %; accuracy of the strain 0,005 mm   Impact test -impact pendulum

Producer: Zwick

Name: HIT5.5P

Temperature range: 25 °C

Measuring range: 1 J – 5 J

Singlescrewextruder

Twinscrewextruder with a Chill-roll-equipment

Kneader

Blown film unit

Pilot fiber spinning line (Single and Bicomponent-Meltblown)

Pilot fiber spinning line (Spunbond)

Pilot fiber spinning line (Spunbond)

Pilot fiber spinning line (Bicomponent-Spunbond, Bicomponent-Meltblown)

Injection molding machine (Arburg)

Streckrahmen -stretchin frame from Brückner

Hot press Mini-injection molding machine Mini-compounder Circulating air dryer
